An input archive designed to load data saved using ExtendableBinaryOutputArchive. More...

#include </home/breiker/code/git/cereal_fwd_github/include/cereal/archives/extendable_binary.hpp>

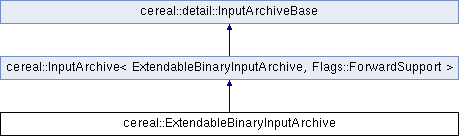

Inheritance diagram for cereal::ExtendableBinaryInputArchive:

Classes
class	Options
	A class containing various advanced options for the ExtendableBinaryInput archive. More...

Public Member Functions
	ExtendableBinaryInputArchive (std::istream &stream, Options const &options=Options::Default())
	Construct, loading from the provided stream. More...

template<std::size_t DataSize>
void	loadBinary (void *const data, std::size_t size)
	Reads size bytes of data from the input stream. More...

template<std::size_t DataSize>
void	loadBinarySingle (void *const data, std::size_t size)
	Load least significant size bytes of type which sizeof is DataSize. More...

template<std::size_t DataSize>
void	copyBinarySingleNoSwap (void dest_, void const src_, std::size_t size_)
	Copies size bytes from input buffer to the output buffer without any byte order swapping. More...

void	skipData (std::size_t size)
	Discards size bytes from the input stream. More...

bool	loadTypeTag ()
	Load type tag from input stream. More...

template<extendable_binary_detail::FieldType expected_type>
auto	getTypeTag () -> decltype(extendable_binary_detail::readType(std::uint8_t
	Gets last type tag loaded from input stream. More...

	if (lastTypeTag.first !=expected_type &&lastTypeTag.first !=FieldType::omitted_field) throw Exception("Loaded wrong lastTypeTag

template<extendable_binary_detail::FieldType expected_type>
auto	getTypeTagNoError () noexcept -> decltype(extendable_binary_detail::readType(std::uint8_t
	Gets last type tag loaded from input stream. More...

template<class T >
void	loadVarint (T &v)
	Load varint from the stream. More...

void	skipVarint ()
	Load varint from the stream, discard input value.

void	loadObjectBeginning ()
	Load metadata of new object.

void	loadEndOfObjectData ()
	Read all remaining data from current object. More...

void	loadOmittedObject ()
	Read/Skip object which was not loaded explicitly.

std::uint32_t	getLoadedClassVersion () const
	Gets last loaded class version.

std::int32_t	getLoadedPolymorphicId () const
	Gets last loaded polymorphic id.

const std::string &	getLoadedPolymorphicName () const
	Gets last loaded polymorphic name.

std::uint32_t	getLoadedObjectId () const
	Gets last loaded object id for shared pointers.

bool	getLoadedPointerValidity () const
	Returns if last pointer was not nullptr.

void	setLastSizeTag (std::size_t size)
	Sets value of loaded size tag.

std::size_t	getLastSizeTag () const
	Returns value of last loaded size tag.

Public Member Functions inherited from cereal::InputArchive< ExtendableBinaryInputArchive, Flags::ForwardSupport >
	InputArchive (ExtendableBinaryInputArchive *const derived)
	Construct the input archive. More...

InputArchive &	operator= (InputArchive const &)=delete

ExtendableBinaryInputArchive &	operator() (Types &&... args)
	Serializes all passed in data. More...

std::shared_ptr< void >	getSharedPointer (std::uint32_t const id)
	Retrieves a shared pointer given a unique key for it. More...

void	registerSharedPointer (std::uint32_t const id, std::shared_ptr< void > ptr)
	Registers a shared pointer to its unique identifier. More...

std::string	getPolymorphicName (std::uint32_t const id)
	Retrieves the string for a polymorphic type given a unique key for it. More...

void	registerPolymorphicName (std::uint32_t const id, std::string const &name)
	Registers a polymorphic name string to its unique identifier. More...

bool	wasSerialized () const
	Indicates if last field was loaded. More...

ExtendableBinaryInputArchive &	operator& (T &&arg)
	Serializes passed in data. More...

ExtendableBinaryInputArchive &	operator>> (T &&arg)
	Serializes passed in data. More...

Public Member Functions inherited from cereal::detail::InputArchiveBase
	InputArchiveBase (InputArchiveBase &&) CEREAL_NOEXCEPT

InputArchiveBase &	operator= (InputArchiveBase &&) CEREAL_NOEXCEPT

Public Attributes
expected	__pad0__: " + std::to_string(static_cast<int>(expected_type)) + " got: " + std::to_string(static_cast<int>(lastTypeTag.first)) )

return	lastTypeTag

Additional Inherited Members
Public Types inherited from cereal::InputArchive< ExtendableBinaryInputArchive, Flags::ForwardSupport >
using	is_saving = std::false_type
	indicates if archive is used for saving

using	is_loading = std::true_type
	indicates if archive is used for loading

Detailed Description

An input archive designed to load data saved using ExtendableBinaryOutputArchive.

This archive outputs data to a stream in an compact binary representation with additional metadata needed to support forward and backward compatibility.

This archive will load the endianness of the serialized data and if necessary transform it to match that of the local machine. This comes at a significant performance cost compared to non portable archives if the transformation is necessary, but causes no performance hit if swapping is not necessary.

The archive will save all integer values as variadic integers. Exception will be thrown when on deserialization value will be bigger than can be stored to target field. It is still recommended to use fixed size integers.

When using a binary archive and a file stream, you must use the std::ios::binary format flag to avoid having your data altered inadvertently.

Constructor & Destructor Documentation

◆ ExtendableBinaryInputArchive()

cereal::ExtendableBinaryInputArchive::ExtendableBinaryInputArchive	(	std::istream &	stream,
		Options const &	options = `Options::Default()`
	)

inline

Construct, loading from the provided stream.

Parameters

stream	The stream to read from. Should be opened with std::ios::binary flag.
options	The ExtendableBinary specific options to use. See the Options struct for the values of default parameters

Member Function Documentation

◆ copyBinarySingleNoSwap()

template<std::size_t DataSize>

void cereal::ExtendableBinaryInputArchive::copyBinarySingleNoSwap	(	void *	dest_,
		void *const	src_,
		std::size_t	size_
	)

inline

Copies size bytes from input buffer to the output buffer without any byte order swapping.

Used for loading least significant size_ bytes from integer of DataSize size.

Template Parameters

DataSize size of destination type

Parameters

dest_	destination address
src_	source address
size_	number of bytes to copy

◆ getTypeTag()

template<extendable_binary_detail::FieldType expected_type>

auto cereal::ExtendableBinaryInputArchive::getTypeTag ( ) -> decltype(extendable_binary_detail::readType(std::uint8_t

inline

Gets last type tag loaded from input stream.

Throws Exception if type is not expected_type or omitted.

See also: loadTypeTag()

Template Parameters

expected_type type which is expected to be loaded

Returns: last loaded type tag

◆ getTypeTagNoError()

template<extendable_binary_detail::FieldType expected_type>

auto cereal::ExtendableBinaryInputArchive::getTypeTagNoError ( ) -> decltype(extendable_binary_detail::readType(std::uint8_t

inlinenoexcept

Gets last type tag loaded from input stream.

Template Parameters

expected_type type which is expected to be loaded

Returns: last loaded type tag Doesn't throw exception on type different than expected_type or omitted

See also: getTypeTag

◆ loadBinary()

template<std::size_t DataSize>

void cereal::ExtendableBinaryInputArchive::loadBinary	(	void *const	data,
		std::size_t	size
	)

inline

Reads size bytes of data from the input stream.

Parameters

data	The data to save
size	The number of bytes in the data

Template Parameters

DataSize T The size of the actual type of the data elements being loaded

◆ loadBinarySingle()

template<std::size_t DataSize>

void cereal::ExtendableBinaryInputArchive::loadBinarySingle	(	void *const	data,
		std::size_t	size
	)

inline

Load least significant size bytes of type which sizeof is DataSize.

Size has to be less than DataSize. Used to load integers using minimal number of bytes. Throws Exception if size bytes cannot be loaded from stream.

Parameters

data	The data to save
size	The number of bytes in the data

Template Parameters

DataSize T The size of the actual type of the data elements being loaded

◆ loadEndOfObjectData()

void cereal::ExtendableBinaryInputArchive::loadEndOfObjectData ( )

inline

Read all remaining data from current object.

Tries to read end of object tag. Any unknown fields which were not loaded explicitly are skipped.

◆ loadTypeTag()

bool cereal::ExtendableBinaryInputArchive::loadTypeTag ( )

inline

Load type tag from input stream.

Type is saved to lastTypeTag field and can be accessed with getTypeTag() method.

See also: getTypeTag(); getTypeTagNoError()

Returns: if type is not omitted_field

◆ loadVarint()

template<class T >

void cereal::ExtendableBinaryInputArchive::loadVarint ( T & v )

inline

Load varint from the stream.

Based on Protocol Buffers usage.

See also: ExtendableBinaryOutputArchive::saveVarint(T)

◆ skipData()

void cereal::ExtendableBinaryInputArchive::skipData ( std::size_t size )

inline

Discards size bytes from the input stream.

Parameters

size	The number of bytes to skip Throws Exception if not enough bytes are read

Member Data Documentation

◆ lastTypeTag

return cereal::ExtendableBinaryInputArchive::lastTypeTag

Initial value:

{

using namespace extendable_binary_detail

The documentation for this class was generated from the following file:

/home/breiker/code/git/cereal_fwd_github/include/cereal/archives/extendable_binary.hpp
